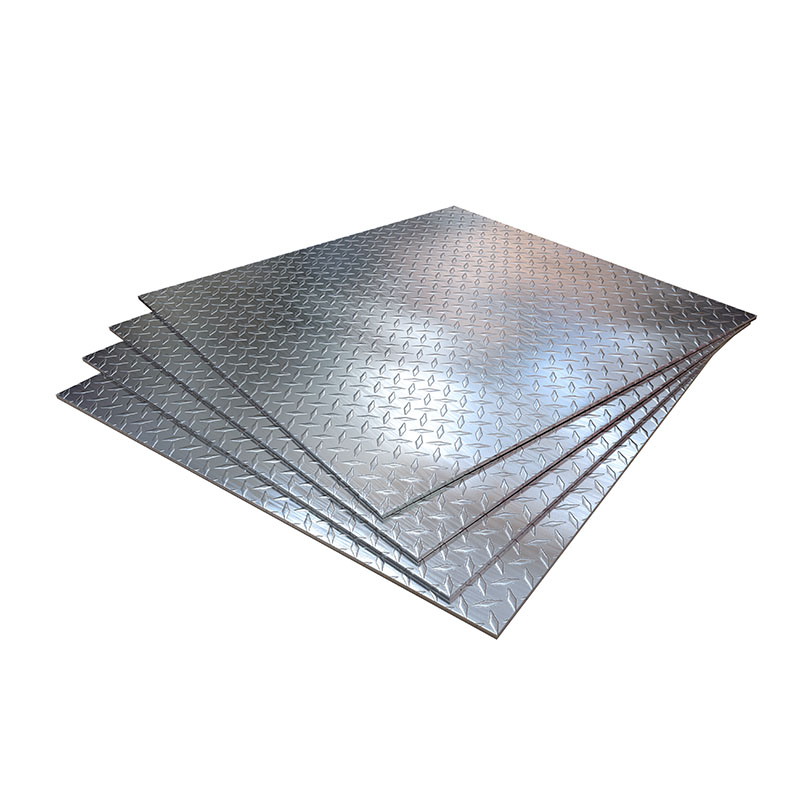

Stainless Steel Checker Plate
| Thickness | 1.20~8.00 mm |
| Width | 1219, 1250, 1500, 1524 |
| Length | According to customer's request |
| Surface Finish | No.1, 2B |
|
|
ASTM |
JIS |
AISI |
EN |
Mill's Standard |
|
Grade |
S30400 |
SUS304 |
304 |
1.4301 |
202 |
|
S30403 |
- |
304L |
1.4307 |
204Cu3 |
|
|
S31603 |
- |
316L |
1.4404 |
|
|
|
S43000 |
SUS430 |
430 |
1.4016 |
|
Chemical Composition
|
ASTM Specification |
|||||
|
ASTM A240 |
Steel Grade |
C% Max. |
Cr% Max. |
Ni% Max. |
Mo% Max. |
|
SUS304 |
0.08 |
18.0~20.0 |
8.0~10.5 |
- |
|
|
SUS304L |
0.03 |
18.0~20.0 |
9.0~13.0 |
- |
|
|
SUS316L |
0.03 |
16.0~18.0 |
12.0~15.0 |
2.0~3.0 |
|
|
SUS430 |
0.12 |
16.0~18.0 |
0.6 |
- |
|
Mechanical Property
|
ASTM Specification |
||||||
|
ASTM A240 |
Steel Grade |
N／m2 MIN. |
N／m2 MIN. |
% MIN. |
HRB MAX. |
Bendability: |
|
Tensile Stress |
Proof Stress |
Elongation |
Hardness |
Bending Angle |
||
|
S30400 |
515 |
205 |
40 |
92 |
No Require |
|
|
S30403 |
485 |
170 |
40 |
92 |
No Require |
|
|
S31603 |
485 |
170 |
40 |
95 |
No Require |
|
|
S43000 |
450 |
205 |
22 |
89 |
180° |
|
304L stainless steel checker plate has the same properties as 304 stainless steel checker plate while it has a raised tread pattern to improve traction. Stainless steel checker plate is suitable for trailer beds, ramps, stair treads, or any application where traction is required.
